Provides precise speed and control.
Reliable and high performing.
It integrates effortlessly with smart control systems.

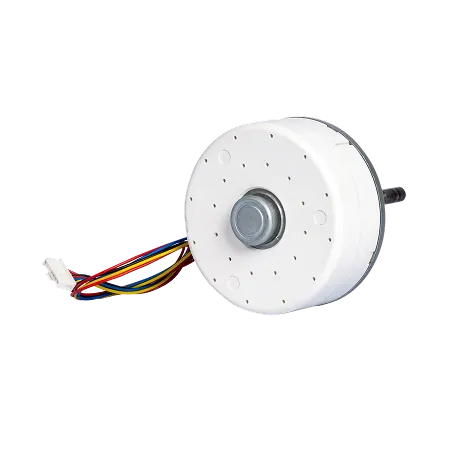

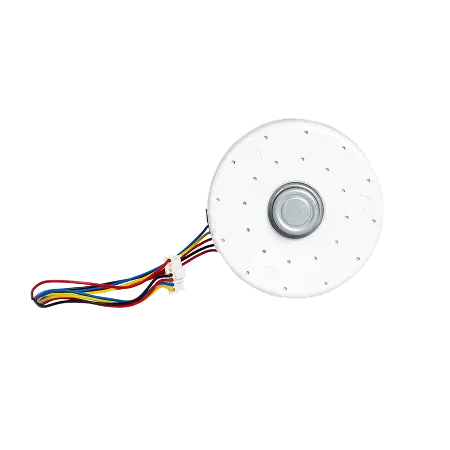

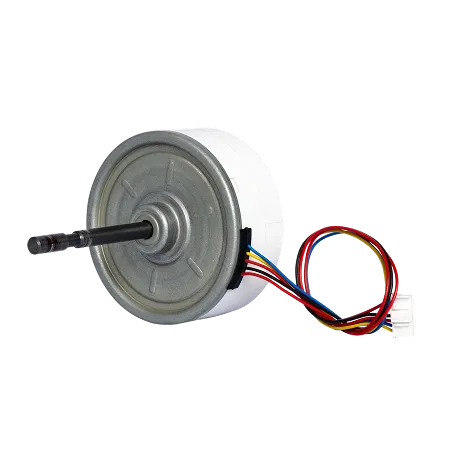

BLDC Motors
BLDC Motors
- Brushless design that minimizes friction and wear for longer life and reduced maintenance.
- Its electronic commutation ensures high efficiency, making them ideal for dynamic speed and load conditions.
- Lightweight and compact builds are made possible by high-performance magnets and the absence of brushes.
- Heat dissipation is enhanced by placing coils on the stator, allowing better airflow and cooling.
- BLDC motors generate minimal electromagnetic interference and result - low electrical. noise, perfect for use around sensitive electronics.
- Maintains performance over extended periods without frequent servicing.
- Gives quick response, fast acceleration and deceleration, improves performance.
| Specifications | |||||
|---|---|---|---|---|---|
| Parameter | Model 1 | Model 2 | Model 3 | Model 4 | Model 5 |
| Output | 33 W | 17 W | 25 W | 30 W | 45 W |
| Voltage | 340 V | 340 V | 310 V | 310 V | 310 V |
| Weight (Tentative) | 276 ± 5 g | 260 ± 5 g | 270 ± 5 g | 270 ± 5 g | 276 ± 5 g |
| Rotation | 1350 minˉ¹ | 1350 minˉ¹ | 1300 minˉ¹ | 1300 minˉ¹ | 1500 minˉ¹ |
| Shaft Length (from rear cover) | 87.1 mm | 50 mm | 64.5 mm | 74.5 mm | 69 mm |
| Output: 33 W / 17 W / 25 W / 30 W / 45 W | |||
|---|---|---|---|
| Torque | 0.230 N-m | Poles | 8P |
| Rotor Type | Inner rotor design | Cooling | Air cooled |
| Protection Class | Totally Enclosed Type | Current | Im = 132 mA |
| Efficiency | Typically above 75% | Commutation | Sensor-based or Sensorless (electronic) |
| Control Input | PWM, CAN, UART, Analog | Protection | IPX1 to IP4X |
| Insulation Class | Class H | ||
| Working Temperature & Humidity :- | |||
|---|---|---|---|
| Temperature | -10 to 45° C | ||
| Humidity | Within 95% RH (To be free from condensation) | ||
| Environmental Conditions | |||
|---|---|---|---|
| Temperature | -20 to 60°C | Humidity | Within 95% RH (No condensation) |
| Environment | Must not contain harmful elements such as corrosive or explosive gases, dust, etc. | ||
- Bharat Electrodrives offers the most comprehensive portfolio of BLDC motor with & without controller and different levels of function integration of its hardware which will be steadily extended. Every level has its own characteristic set of benefits.
- Brushless design that minimizes friction and wear for longer life and reduced maintenance.
- Its electronic commutation ensures high efficiency, making them ideal for dynamic speed and load conditions.
- Lightweight and compact builds are made possible by high-performance magnets and the absence of brushes.
- Heat dissipation is enhanced by placing coils on the stator, allowing better airflow and cooling.
- BLDC motors generate minimal electromagnetic interference and result - low electrical noise, perfect for use around sensitive electronics.
- Maintains performance over extended periods without frequent servicing.
- Gives quick response, fast acceleration and deceleration, improves performance.
- Compact in size and high-performance motor.
- Alarming-At an over-load condition, the motor stops and an alarm signal is output.
- Rated 5-Star Energy Efficiency.
- Designed for significant energy savings compared to conventional ceiling fans.
- They balance between power, durability, installation versatility and support components.
- Available in different wattages based on the application.
